ps绘制一个老式宝丽莱相机图标

Step 28

Createnew layer then convert it to Clipping Mask by pressing Command/Ctrl + Alt + G.Draw highlight on top of the lens.

创建新层，然后将其转换为剪贴蒙按命令/按Ctrl+ Alt+G借鉴镜头前的亮点。

Step 29

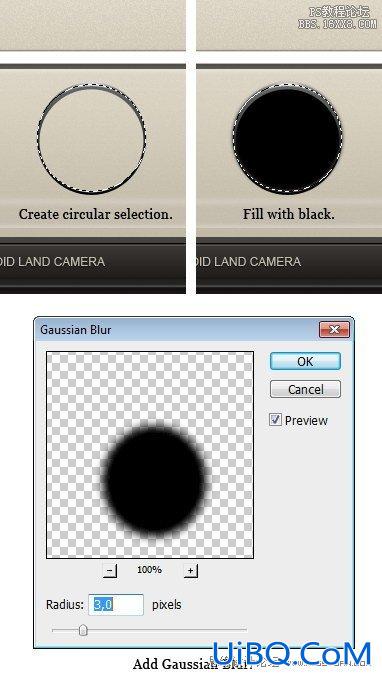

Createnew layer and put it behind shape we have just created. Create circularselection and fill it with black. Soften it by adding Gaussian Blur (Filter> Blur > Gaussian Blur).

创建新层，并把它的背后，我们刚刚创建的形状。创建圆形选区，并填充黑色。软化，加入高斯模糊(滤镜“模糊”高斯模糊)。

Step 30

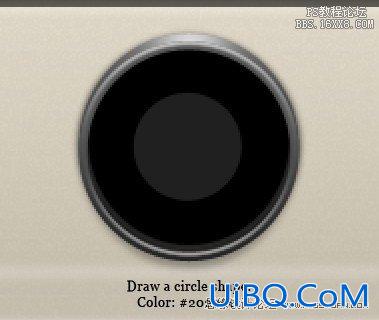

Draw acircle shape with color #212121. Duplicate shape then move it 5 px up. Set pathmode to Subtract.

绘制一个圆形颜色#212121。重复的形状，然后将其移动5像素了。设置路径模式为减。

Step 31

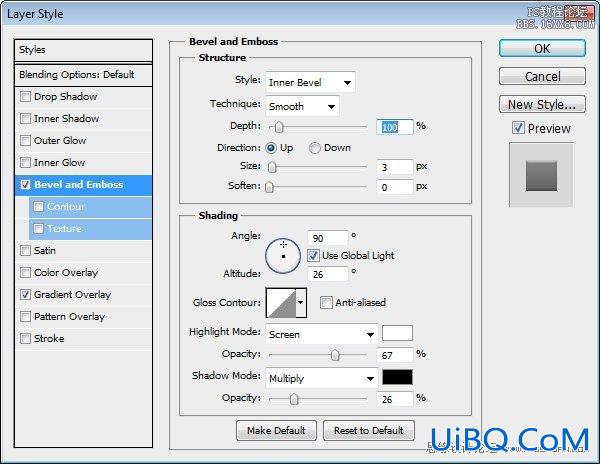

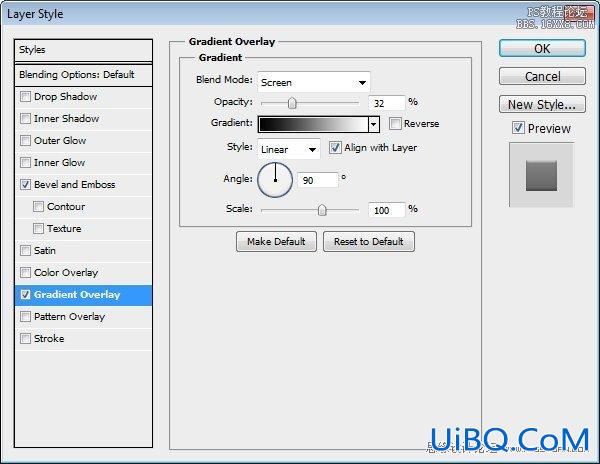

Next,create a ring shape. To create this shape, start with a regular circle shape,duplicate the path and transform it to smaller size. Set path mode to Subtract.Add Bevel and Emboss and Gradient Overlay.

接下来，形成一个环的形状。要创建此形状，开始一个规则的圆形形状，复制路径并将其转换为更小的尺寸。设置路径模式，以减法。添加斜面和浮雕和渐变叠加。

Step 32

We willstart dr优艾设计网_Photoshop高级教程awing inner part of the lens. First, I want you to know that they arejust simply lots of circle shapes combined with layer style. Draw a circleshape inside the lens.

我们将开始绘制的镜头内部。首先，我想让你知道，他们只是简单的圆形状与图层样式结合地段。镜头内画一个圆圈形状。
